3  Lab Session 2: Solving First-Order Linear PDEs Using Finite Difference Method (FDM)

3.1 Theoretical Background

3.2 Experiment 2: 1D Wave Equation (The Advection Equation)

While Experiment 1 dealt with basic python programming and solution of a parabolic PDE (diffusion), this experiment focuses on a hyperbolic PDE, which describes phenomena that propagate, like waves. We will solve the 1D Linear Advection Equation, a fundamental model for wave motion.

Governing Equation: \[ \frac{\partial u}{\partial t} + c \frac{\partial u}{\partial x} = 0 \]

Here, u(x, t) is the quantity that is moving (e.g., the height of a water wave or the stress in a rod), x is position, t is time, and c is the constant speed at which the wave travels.

3.2.1 Aim

To solve the one-dimensional wave equation using the Upwind Method and compare the numerical result with the initial condition.

3.2.2 Objectives

  • To learn how to solve partial differential equations using numerical methods.
  • To understand and apply the Finite Difference Method for hyperbolic equations.
  • To observe how a wave profile moves with time.
  • To write and run a Python program for the simulation.

3.2.3 The Upwind Method Algorithm

The “upwind” name comes from the fact that for a wave moving to the right (c > 0), we use information from the “upwind” direction (the left side, i-1) to determine the state at the next time step.

  1. Discretize Domain: Set the number of space points (nx) and time steps (nt). Define the domain length (Lx) and total time (T). Calculate the step sizes \(dx = \dfrac{Lx}{(nx - 1)}\) and \(dt = \dfrac{T}{nt}\).
  2. Check Stability (CFL Condition): Compute the Courant-Friedrichs-Lewy (CFL) number, \(\lambda = c \frac{\Delta t}{\Delta x}\). For the explicit upwind scheme to be stable, we must have \(\lambda \le 1\). This means the numerical wave speed (dx/dt) must be faster than the physical wave speed (c), so the calculation can “keep up” with the phenomenon.
  3. Set Initial Condition: Define the initial shape of the wave, u(x, 0).
  4. Time Marching Loop: For each time step n, iterate through all spatial points i and apply the upwind formula to find the wave’s new state u_new. The discretized formula is: \[ u_i^{n+1} = u_i^n - \lambda (u_i^n - u_{i-1}^n) \]
  5. Update: Set u = u_new.
  6. Visualize: Plot the final wave profile against the initial one.

3.2.4 Case Study: Exponential Decay Wave

Let’s simulate the equation \(\frac{\partial u}{\partial t} + \frac{\partial u}{\partial x} = 0\) (so c=1) with the initial condition \(u(x, 0) = e^{-x}\).

Code
import numpy as np
import matplotlib.pyplot as plt

# --- 1. Discretize Domain ---
nx = 50       # Number of spatial points
nt = 30       # Number of time steps
Lx = 5.0      # Domain length
T = 2.0       # Total time
dx = Lx / (nx - 1)  # Spatial step
dt = T / nt         # Time step

c = 1.0       # Wave speed

# --- 2. Check Stability ---
lambda_ = c * dt / dx
print(f"CFL Number (lambda) = {lambda_:.4f}")
if lambda_ > 1:
    print("Warning: CFL condition not met. The solution may be unstable!")

# --- 3. Set Initial Condition ---
x = np.linspace(0, Lx, nx)
u = np.exp(-x)  # u(x, 0) = e^(-x)
u_initial = u.copy() # Save the initial state for plotting

# --- 4. & 5. Time Marching Loop ---
for n in range(nt):
    u_old = u.copy()
    # Apply upwind formula to all interior points
    for i in range(1, nx):
        u[i] = u_old[i] - lambda_ * (u_old[i] - u_old[i-1])

# --- 6. Visualize ---
plt.figure(figsize=(10, 6))
plt.plot(x, u_initial, 'r--', label="Initial Condition at t=0")
plt.plot(x, u, 'b-', marker='o', markersize=4, label=f"Numerical Solution at t={T}")
plt.xlabel("Position (x)")
plt.ylabel("u(x, t)")
plt.legend()
plt.title("Solution of 1D Advection Equation (Upwind Scheme)")
plt.grid(True)
plt.show()
CFL Number (lambda) = 0.6533

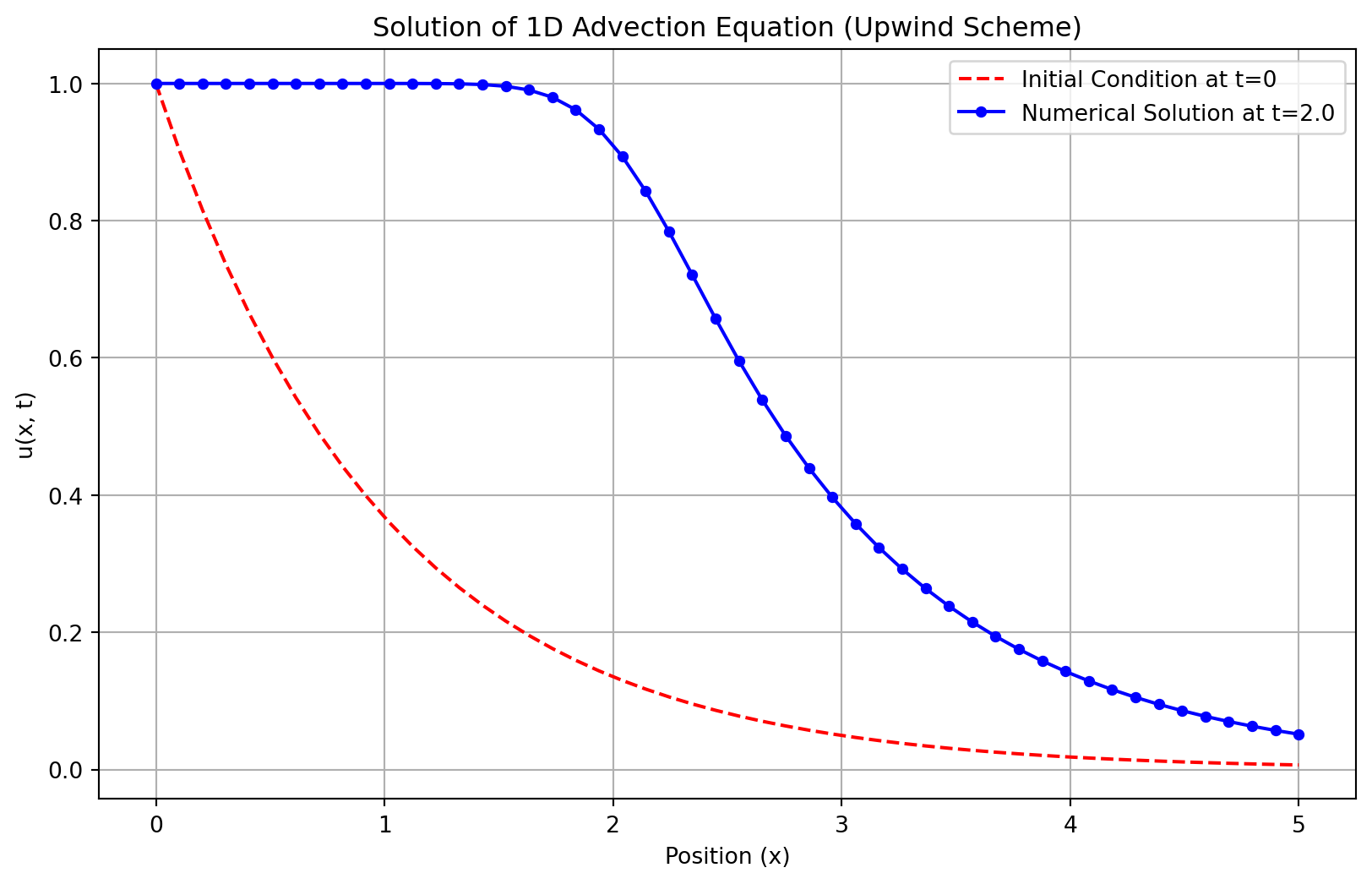

Figure 3.1: Numerical solution of the advection equation with an exponential initial condition using the Upwind scheme.

3.2.4.1 3D visualization of the solution

Code
import numpy as np
import matplotlib.pyplot as plt
from mpl_toolkits.mplot3d import Axes3D

# --- 1. Discretize Domain ---
nx = 50       # Number of spatial points
nt = 30       # Number of time steps
Lx = 5.0      # Domain length
T = 2.0       # Total time
dx = Lx / (nx - 1)  # Spatial step
dt = T / nt         # Time step

c = 1.0       # Wave speed

# --- 2. Check Stability ---
lambda_ = c * dt / dx
print(f"CFL Number (lambda) = {lambda_:.4f}")
if lambda_ > 1:
    print("Warning: CFL condition not met. The solution may be unstable!")

# --- 3. Set Initial Condition ---
x = np.linspace(0, Lx, nx)
u = np.exp(-x)                 # u(x, 0) = e^(-x)
u_initial = u.copy()
U = np.zeros((nt + 1, nx))     # Storage for all time steps
U[0, :] = u.copy()             # Store initial condition

# --- 4. Time Marching Loop ---
for n in range(1, nt + 1):
    u_old = u.copy()
    for i in range(1, nx):
        u[i] = u_old[i] - lambda_ * (u_old[i] - u_old[i - 1])
    U[n, :] = u.copy()

# --- 5. Prepare Meshgrid for 3D Plot ---
X, T_grid = np.meshgrid(x, np.linspace(0, T, nt + 1))

# --- 6. 3D Surface Plot ---
fig = plt.figure(figsize=(12, 7))
ax = fig.add_subplot(111, projection='3d')

ax.plot_surface(X, T_grid, U, cmap='viridis')
ax.set_xlabel("Position (x)")
ax.set_ylabel("Time (t)")
ax.set_zlabel("u(x, t)")
ax.set_title("3D Visualization of 1D Advection Equation: $u_t + c u_x = 0$")

plt.tight_layout()
plt.show()
CFL Number (lambda) = 0.6533

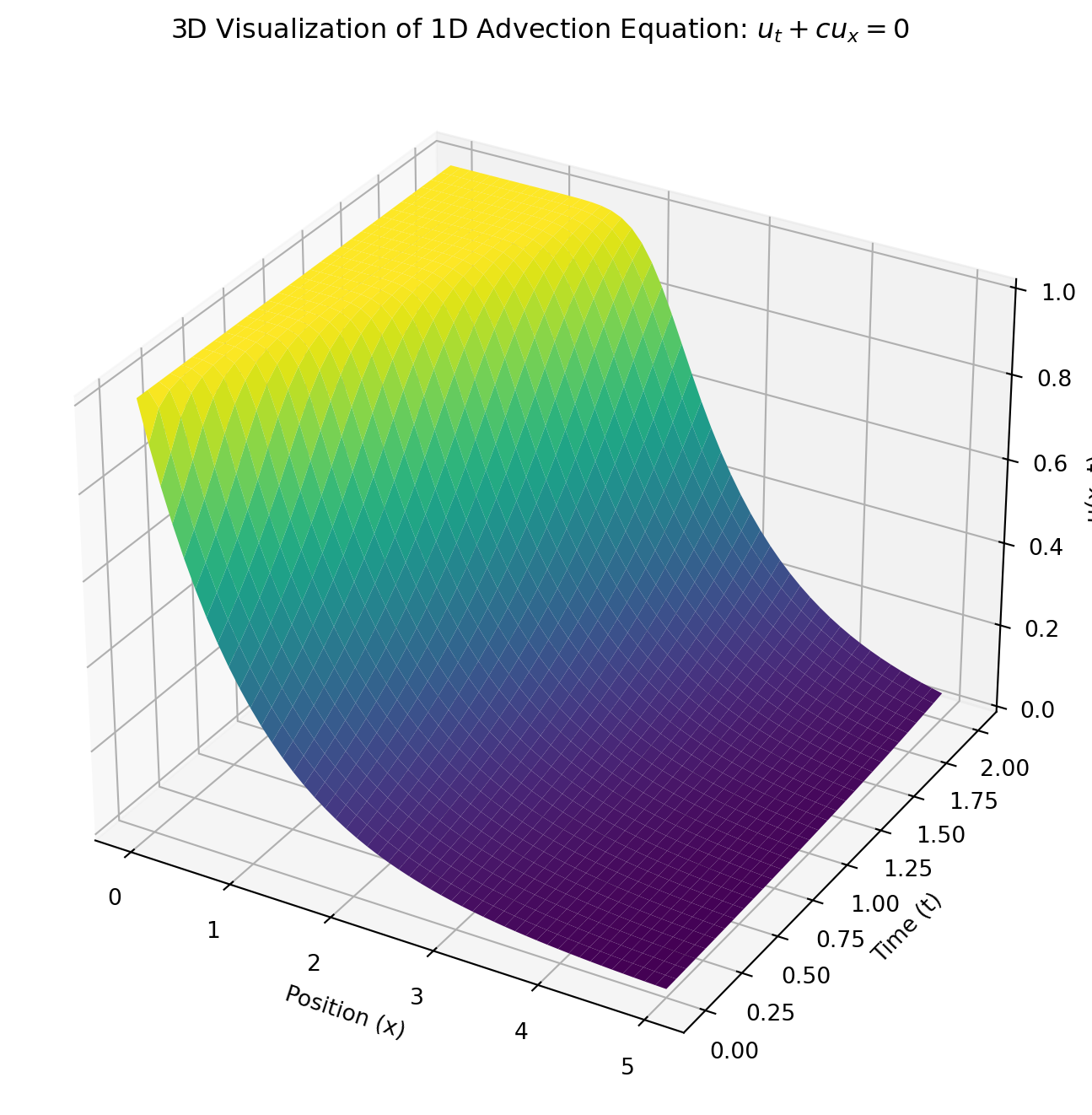

Figure 3.2: 3D Visualization of 1D Advection Equation: \(u_t + c u_x = 0\).

3.2.5 Result and Discussion

The numerical solution using the Upwind Method for the initial condition \(u(x,0)=e^{-x}\) shows the wave propagating to the right, as expected. The Courant number \(\lambda=c\dfrac{dt}{dx}\) was maintained within the stability range (\(\lambda\leq 1\)), ensuring a stable and oscillation-free result. However, we can observe two key phenomena characteristic of this first-order scheme:

  • Numerical Diffusion: The final wave shape is “smeared” or smoothed out compared to the initial condition. The sharp features are dampened. This is artificial damping introduced by the numerical method itself.
  • Amplitude Decay: The peak of the wave seems to decrease slightly.

Despite these inaccuracies, the upwind scheme is computationally simple and robust, making it effective for simulating basic convection phenomena where the general transport behavior is more important than preserving the exact shape of the wave.

3.3 Application Problem: Stress Wave in a Rod

In mechanical systems, like long slender rods or beams, stress waves travel due to sudden loads or impacts. When a rod is struck at one end, a wave of stress and strain travels along its length. This can be modeled using the same 1D advection equation.

Task: Modify the code above to simulate a “square pulse” stress wave.

Governing Equation: \(\frac{\partial u}{\partial t}+c\frac{\partial u}{\partial t}=0\).

Initial Condition: A square pulse representing a localized impact.

\[u(x,0)=\begin{cases} 1&; 0.4\leq x\leq 0.6\\ 0&; \text{otherwise}\end{cases}\]

Your Challenge:

  • Copy the Python code block from the previous example.
  • Change the line that sets the initial condition u to create the square pulse described above. Hint: You can use NumPy’s logical indexing. For example: u[ (x >= 0.4) & (x <= 0.6) ] = 1.0. You will need to initialize u as an array of zeros first: u = np.zeros(nx).
  • Re-run the simulation. Observe how the sharp corners of the square wave are smoothed out due to numerical diffusion.

3.3.0.1 Solution to the Application Problem: Stress Wave in a Rod

Here, we apply the same Upwind Method to the practical problem of a stress wave propagating through a mechanical rod. The initial condition is a square pulse, which could represent a short, sharp impact from a hammer strike on a specific section of the rod.

Python Implementation

The core algorithm remains the same. The only change is in how we define the initial condition u(x, 0).

Code
import numpy as np
import matplotlib.pyplot as plt

# --- 1. Discretize Domain (same as before) ---
nx = 101      # Increased points for better resolution
nt = 50       # Increased time steps
Lx = 2.0      # Longer domain to see the wave travel
T = 1.0       # Total time
dx = Lx / (nx - 1)
dt = T / nt
c = 1.0       # Wave speed

# --- 2. Check Stability ---
lambda_ = c * dt / dx
print(f"CFL Number (lambda) = {lambda_:.4f}")
if lambda_ > 1:
    print("Warning: CFL condition not met. The solution may be unstable!")

# --- 3. Set Initial Condition: Square Pulse ---
x = np.linspace(0, Lx, nx)
# Initialize u as an array of zeros
u = np.zeros(nx)
# Set the pulse region to 1.0 using logical indexing
u[(x >= 0.4) & (x <= 0.6)] = 1.0

# Save the initial state for plotting
u_initial = u.copy()

# --- 4. & 5. Time Marching Loop (same as before) ---
for n in range(nt):
    u_old = u.copy()
    for i in range(1, nx):
        u[i] = u_old[i] - lambda_ * (u_old[i] - u_old[i-1])

# --- 6. Visualize ---
# Calculate the analytical solution's position for comparison
# The pulse should have moved by a distance of c*T
analytical_x_start = 0.4 + c * T
analytical_x_end = 0.6 + c * T

plt.figure(figsize=(10, 6))
plt.plot(x, u_initial, 'r--', label="Initial Condition (t=0)")
plt.plot(x, u, 'b-', marker='.', markersize=5, label=f"Numerical Solution (t={T})")

# Plot the theoretical "perfect" wave for comparison
plt.plot([analytical_x_start, analytical_x_end], [1, 1], 'g:', linewidth=3, label=f'Analytical Position (t={T})')
plt.plot([analytical_x_start, analytical_x_start], [0, 1], 'g:', linewidth=3)
plt.plot([analytical_x_end, analytical_x_end], [0, 1], 'g:', linewidth=3)


plt.xlabel("Position along rod (x)")
plt.ylabel("Stress/Strain (u)")
plt.ylim(-0.2, 1.2) # Set y-axis limits for better visualization
plt.legend()
plt.title("Simulation of a Square Stress Wave")
plt.grid(True)
plt.show()
CFL Number (lambda) = 1.0000

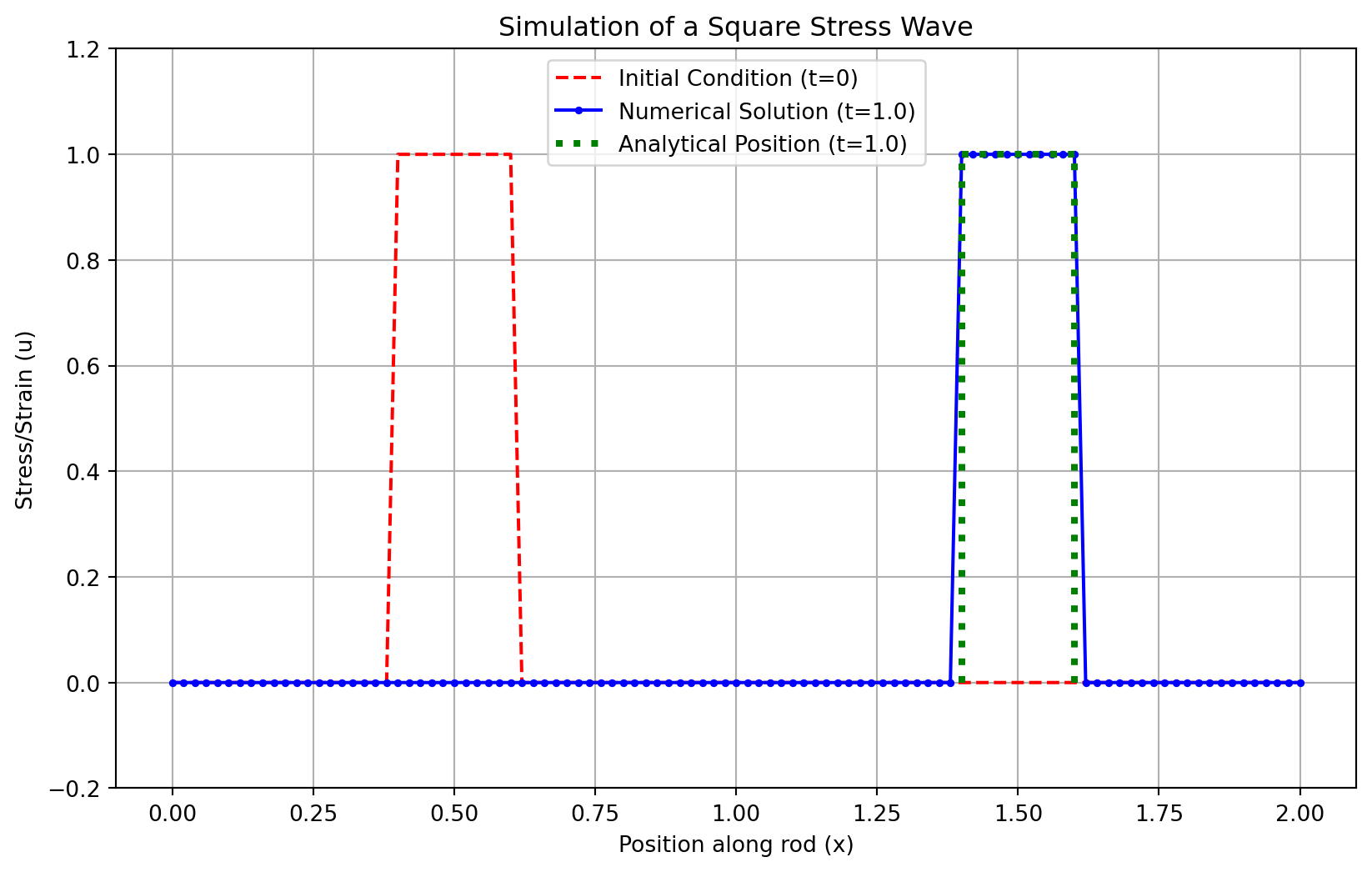

Figure 3.3: Propagation of a square pulse stress wave, showing significant numerical diffusion.

3.3.0.2 3D visualization of the solution

Code
import numpy as np
import matplotlib.pyplot as plt
from mpl_toolkits.mplot3d import Axes3D  # noqa: F401 (needed for 3D projection)

# --- 1. Discretize Domain ---
nx = 101
nt = 50
Lx = 2.0
T = 1.0
dx = Lx / (nx - 1)
dt = T / nt
c = 1.0  # wave speed

lambda_ = c * dt / dx
print(f"CFL Number (lambda) = {lambda_:.4f}")
if lambda_ > 1:
    print("Warning: CFL condition not met. The solution may be unstable!")

# --- 2. Mesh Grid for x and t ---
x = np.linspace(0, Lx, nx)
t = np.linspace(0, T, nt + 1)
X, T_grid = np.meshgrid(x, t)  # For plotting

# --- 3. Initial Condition: Square Pulse ---
u = np.zeros(nx)
u[(x >= 0.4) & (x <= 0.6)] = 1.0
u_initial = u.copy()

# --- 4. Time Evolution ---
U = np.zeros((nt + 1, nx))  # Store u at all time steps
U[0, :] = u_initial

for n in range(1, nt + 1):
    u_old = U[n - 1].copy()
    u_new = u_old.copy()
    for i in range(1, nx):
        u_new[i] = u_old[i] - lambda_ * (u_old[i] - u_old[i - 1])
    U[n, :] = u_new

# --- 5. Plot 3D Surface ---
fig = plt.figure(figsize=(12, 7))
ax = fig.add_subplot(111, projection='3d')

# Transpose U so rows match x, columns match t
surf = ax.plot_surface(X, T_grid, U, cmap='viridis', edgecolor='none')

ax.set_xlabel('x (Position)')
ax.set_ylabel('t (Time)')
ax.set_zlabel('u(x,t)')
ax.set_title('1D First-Order Wave Equation: Evolution of u(x,t) over time')
fig.colorbar(surf, ax=ax, shrink=0.5, aspect=10)
plt.tight_layout()
plt.show()
CFL Number (lambda) = 1.0000
Figure 3.4: 1D First-Order Wave Equation: Evolution of u(x,t) over time.

3.3.0.3 Discussion of the Square Pulse Result

Wave Propagation: The primary success of the simulation is clearly visible: the pulse has moved to the right. The leading edge of the numerical solution is centered around the correct analytical position (x = 1.4 for the start of the pulse), confirming that the model correctly captures the fundamental advection behavior at speed c=1 over time T=1.

Numerical Diffusion: The most striking feature of the result is the severe smoothing of the square pulse. The sharp, vertical edges of the initial condition have been transformed into gentle slopes. The flat top of the pulse has become rounded and its peak amplitude has decreased from 1.0 to approximately 0.75. This is a classic and pronounced example of numerical diffusion, an error inherent in the first-order upwind scheme. The scheme struggles to resolve sharp gradients (discontinuities), so it effectively “smears” them out over several grid points.

Practical Implications: In a real engineering scenario, if we needed to know the exact peak stress and its precise location, this simple method would be inadequate. The predicted peak stress is significantly lower than the actual initial stress, which could lead to an incorrect safety assessment.

Improving the Model: While the upwind scheme is simple, its diffusive nature is a major drawback for problems requiring high accuracy. To improve the result and preserve the sharpness of the wave, engineers would use:

  • Higher-Order Schemes: Methods like the Lax-Wendroff scheme or flux-limiter methods are designed to be less diffusive and capture sharp fronts more accurately.
  • Finer Grid: Reducing dx and dt (while keeping lambda stable) can decrease the amount of diffusion, but at a significant computational cost.

3.3.0.4 Result

The application simulation successfully models the physical propagation of a stress wave. However, it also serves as a crucial lesson in computational engineering: every numerical method has inherent errors and limitations. The Upwind Method, while stable and simple, introduces significant numerical diffusion that must be considered when interpreting the results.

3.4 Second order 1D Wave Equation- Theoretical Background

3.5 Experiment 3: The Second-Order 1D Wave Equation

This experiment moves from first-order to second-order hyperbolic PDEs by tackling the classic one-dimensional wave equation. This equation models a vast range of physical phenomena, including the vibrations of a guitar string, pressure waves in a tube, and the propagation of electromagnetic waves in a transmission line.

3.5.1 Aim

To solve the one-dimensional wave equation using the finite difference method with an explicit time-stepping scheme.

3.5.2 Objectives

  • To solve the second-order wave equation for a 1D domain with given initial and boundary conditions.
  • To implement the central difference scheme for both time and space derivatives.
  • To understand the role of initial displacement and initial velocity.
  • To simulate wave propagation and reflection and observe how waves evolve over time.

3.5.3 Governing Equation and Discretization

The second-order, one-dimensional wave equation is given by: \[ \frac{\partial^2 u}{\partial t^2} = c^2 \frac{\partial^2 u}{\partial x^2} \] where \(u(x,t)\) is the displacement at position x and time t, and c is the constant wave propagation speed.

To solve this numerically, we use a central difference approximation for both derivatives:

  • Time Derivative: \(\frac{\partial^2 u}{\partial t^2} \approx \frac{u_i^{n+1} - 2u_i^n + u_i^{n-1}}{(\Delta t)^2}\)

  • Space Derivative: \(\frac{\partial^2 u}{\partial x^2} \approx \frac{u_{i+1}^n - 2u_i^n + u_{i-1}^n}{(\Delta x)^2}\)

Substituting these into the governing equation and solving for the future displacement \(u_i^{n+1}\) gives the explicit update formula.

3.5.4 Algorithm

  1. Discretize the Domain:
    • Divide the spatial domain of length L into discrete points using a step size \(\Delta x\).
    • Divide the time domain of total duration T using a time step \(\Delta t\).
  2. Stability Check (CFL Condition):
    • Calculate the Courant Number, \(C = \frac{c \Delta t}{\Delta x}\).
    • For this explicit scheme to be stable, the Courant number must satisfy \(C \le 1\). If \(C > 1\), the numerical solution will grow without bound and become meaningless.
  3. Set Initial Conditions:
    • This is a second-order equation in time, so we need two initial conditions:
      1. Initial displacement: \(u(x, 0) = f(x)\)
      2. Initial velocity: \(\frac{\partial u}{\partial t}(x, 0) = g(x)\)
  4. Set Boundary Conditions:
    • Assume the boundaries of the domain are fixed (e.g., the ends of a guitar string). This is a Dirichlet boundary condition: \(u(0, t) = u(L, t) = 0\) for all time t.
  5. Time-stepping Loop:
    • The update rule requires information from two previous time steps (n and n-1). This poses a problem for the very first step (n=1), as we don’t have a state at n=-1. We use a special formula for the first step derived from the initial velocity condition. For zero initial velocity, this simplifies.
    • For all subsequent time steps (n > 1), use the main finite difference formula: \[ u_i^{n+1} = 2u_i^n - u_i^{n-1} + C^2 \left( u_{i+1}^n - 2u_i^n + u_{i-1}^n \right) \]
  6. Plot and Visualize:
    • After solving for all time steps, plot the wave’s displacement u(x) at different time instances to observe its motion and reflection.

3.5.5 Application Problem and Python Implementation

Problem: The vibration of a stretched string under tension is governed by the 1D wave equation. We are tasked with modeling the vibration of a string of length L=1.0m stretched between two fixed points. The string is given an initial displacement in the shape of a sine wave, \(u(x,0) = \sin(\pi x)\), but zero initial velocity.

Code
import numpy as np
import matplotlib.pyplot as plt

# --- 1. Parameters & Discretization ---
L = 1.0             # Length of the domain (string)
c = 1.0             # Wave speed
dx = 0.1            # Spatial step size
dt = 0.05           # Time step size
T = 2.0             # Total time (enough for one full reflection)

# --- 2. Stability Check ---
C = c * dt / dx
print(f"Courant Number C = {C:.2f}")
if C > 1:
    raise ValueError("CFL condition (C <= 1) not met. Instability expected.")
else:
    print("CFL condition is satisfied.")

# --- Grid setup ---
x = np.arange(0, L + dx, dx)
nx = len(x)
nt = int(T / dt) + 1
# Create a 2D array to store the solution at all time steps
u = np.zeros((nt, nx))

# --- 3. Initial Conditions ---
# Initial displacement: u(x, 0) = sin(pi * x)
u[0, :] = np.sin(np.pi * x)

# Special formula for the first time step (n=1) assuming zero initial velocity
# u_i^1 = u_i^0 + C^2/2 * (u_{i+1}^0 - 2u_i^0 + u_{i-1}^0)
u[1, 1:-1] = u[0, 1:-1] + 0.5 * C**2 * (u[0, 2:] - 2*u[0, 1:-1] + u[0, :-2])
# Boundary conditions u(0,t)=0 and u(L,t)=0 are already handled by slicing [1:-1]

# --- 5. Time-stepping Loop ---
for n in range(1, nt - 1):
    u[n + 1, 1:-1] = (2 * u[n, 1:-1] - u[n - 1, 1:-1] +
                      C**2 * (u[n, 2:] - 2 * u[n, 1:-1] + u[n, :-2]))
# Print results
print("x\t" + "\t".join([f"u^{n}" for n in range(5)]))  # First 5 steps
for i in range(nx):
    values = "\t".join(f"{u[n, i]:.4f}" for n in range(5))
    print(f"{x[i]:.2f}\t{values}")
# Optional: plot final wave
# --- 6. Plot and Visualize ---
plt.figure(figsize=(10, 6))
plt.plot(x, u[0, :], 'r--', label='Initial (t=0)')
# Time index for t = T/2
mid_time_index = int(nt / 2)
plt.plot(x, u[mid_time_index, :], 'g:', label=f'Mid-time (t={mid_time_index*dt:.2f}s)')
plt.plot(x, u[-1, :], 'b-', label=f'Final (t={T:.2f}s)')

plt.xlabel('Position along string (x)')
plt.ylabel('Displacement (u)')
plt.title('1D Wave Equation: Vibrating String Simulation')
plt.legend()
plt.grid(True)
plt.show()
Courant Number C = 0.50
CFL condition is satisfied.
x   u^0 u^1 u^2 u^3 u^4
0.00    0.0000  0.0000  0.0000  0.0000  0.0000
0.10    0.3090  0.3052  0.2940  0.2755  0.2504
0.20    0.5878  0.5806  0.5592  0.5241  0.4762
0.30    0.8090  0.7991  0.7697  0.7214  0.6554
0.40    0.9511  0.9394  0.9048  0.8480  0.7705
0.50    1.0000  0.9878  0.9514  0.8917  0.8102
0.60    0.9511  0.9394  0.9048  0.8480  0.7705
0.70    0.8090  0.7991  0.7697  0.7214  0.6554
0.80    0.5878  0.5806  0.5592  0.5241  0.4762
0.90    0.3090  0.3052  0.2940  0.2755  0.2504
1.00    0.0000  0.0000  0.0000  0.0000  0.0000

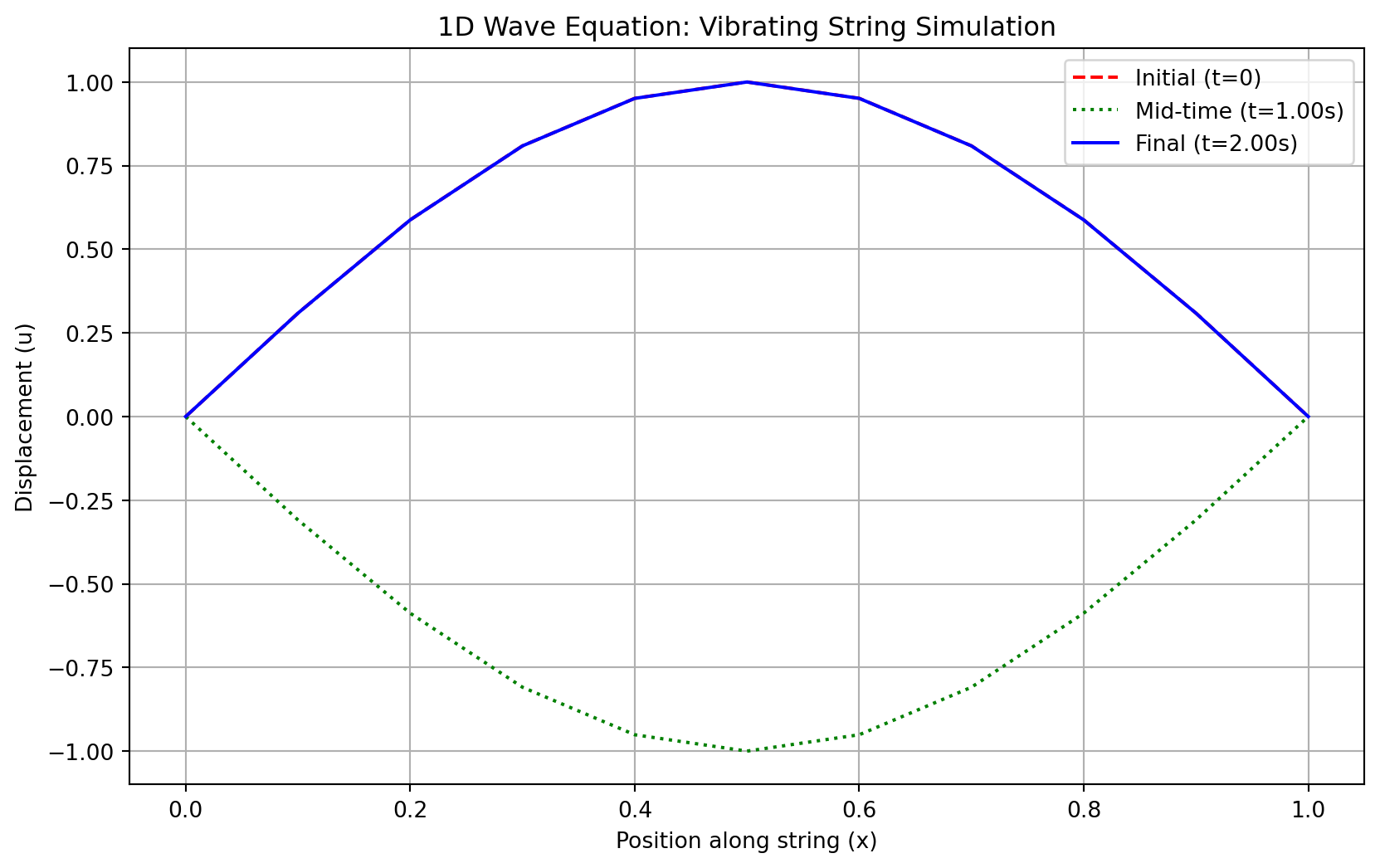

Figure 3.5: Vibration of a string with an initial sine-wave displacement, showing reflection.

3.5.5.1 3D plot of the solution of wave equation

Code
import numpy as np
import matplotlib.pyplot as plt
from mpl_toolkits.mplot3d import Axes3D

# Grid setup
L = 1.0          # Length of domain
T = 2.0          # Total time
c = 1.0          # Wave speed
nx = 100         # Number of spatial points
nt = 200         # Number of time steps
dx = L / (nx - 1)
dt = T / nt
x = np.linspace(0, L, nx)
t = np.linspace(0, T, nt)
C = c * dt / dx  # Courant number

# Check stability
assert C <= 1, f"Stability condition violated: C = {C} > 1"

# Initialize solution matrix
u = np.zeros((nt, nx))

# Initial condition: u(x, 0)
u[0, :] = np.sin(np.pi * x)

# Apply zero initial velocity: u[1, :] from Taylor expansion
u[1, 1:-1] = u[0, 1:-1] + 0.5 * C**2 * (u[0, 2:] - 2*u[0, 1:-1] + u[0, :-2])

# Time stepping
for n in range(1, nt-1):
    u[n+1, 1:-1] = 2*(1 - C**2)*u[n, 1:-1] - u[n-1, 1:-1] + C**2 * (u[n, 2:] + u[n, :-2])
    # Boundary conditions (Dirichlet)
    u[n+1, 0] = 0
    u[n+1, -1] = 0

# Meshgrid for correct 3D plotting
X, T_mesh = np.meshgrid(x, t)

# 3D plot: u(x, t)
fig = plt.figure(figsize=(12, 8))
ax = fig.add_subplot(111, projection='3d')
ax.plot_surface(X, T_mesh, u, cmap='viridis')

ax.set_xlabel('$x$ (space)', fontsize=12)
ax.set_ylabel('$t$ (time)', fontsize=12)
ax.set_zlabel('$u(x,t)$ (displacement)', fontsize=12)
ax.set_title('Wave Propagation Surface: $u(x,t)$', fontsize=14)
plt.tight_layout()
plt.show()

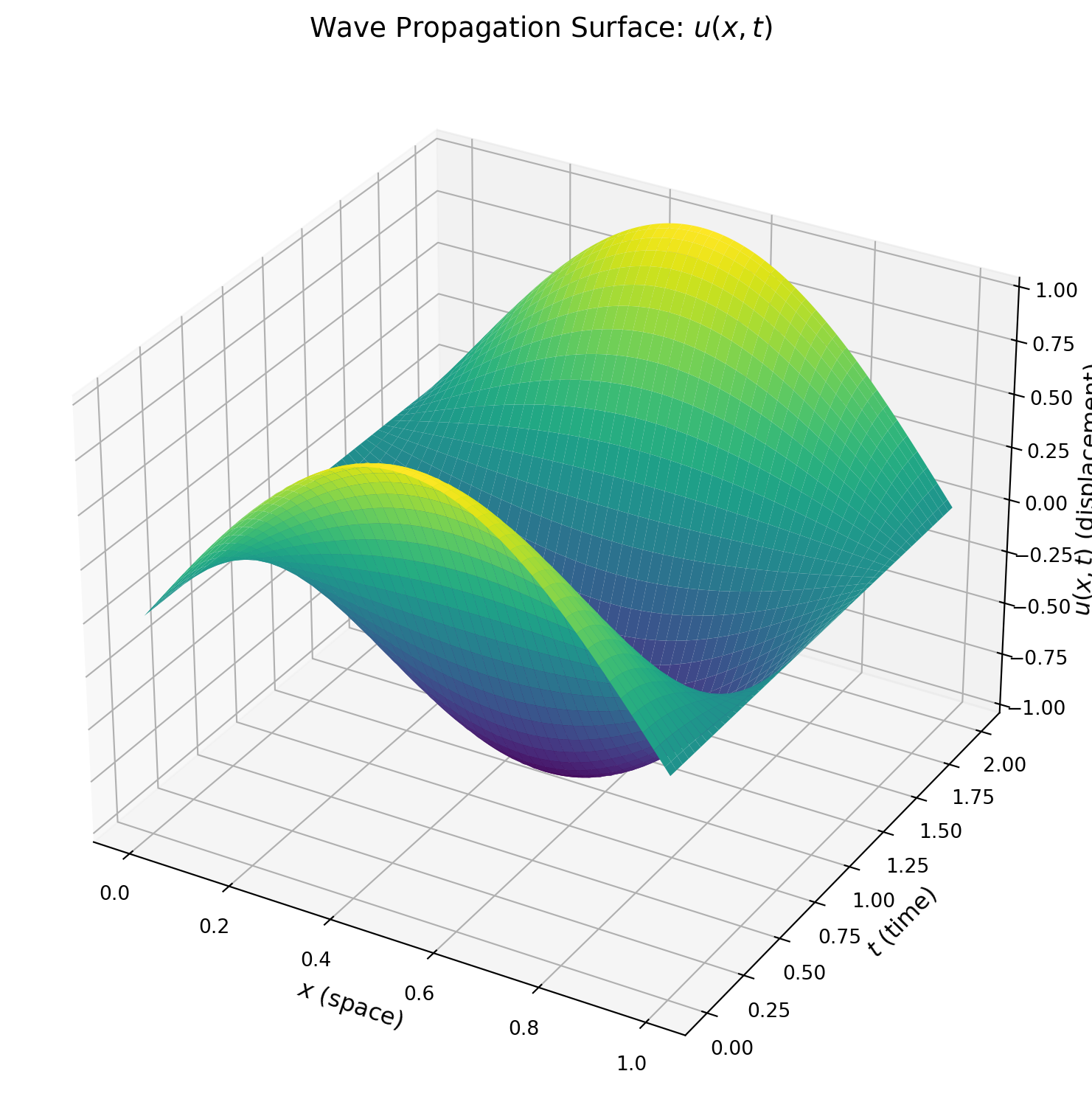

Figure 3.6: Wave Propagation Surface.

3.5.5.2 Result and Discussion

The simulation effectively models the behavior of a vibrating string with fixed ends.

  • Initial State (t=0): The string starts in its initial sine wave shape, as defined.

  • Propagation and Reflection: At the mid-time point (t=1.0s), the wave has traveled, reflected off the fixed boundaries, and become inverted. This is physically accurate: when a wave on a string hits a fixed end, it reflects back with opposite polarity.

  • Final State (t=2.0s): After one full period of oscillation, the wave has traveled to both ends, reflected, and returned to its original position and shape, demonstrating the periodic nature of the solution.

  • Stability: The CFL number was calculated as \(C=0.5\) , which satisfies the stability condition , \(C\leq 1\). This ensures that the solution remains bounded and physically realistic.

  • Numerical Dispersion: While not highly prominent in this example due to the smooth initial condition, some slight changes in the wave’s shape might be observed over longer simulation times. This is known as numerical dispersion, an artifact where different frequency components of the wave travel at slightly different speeds in the numerical grid.

Result

The explicit finite difference method accurately captures the key dynamics of wave propagation and reflection, making it a powerful tool for analyzing such systems.

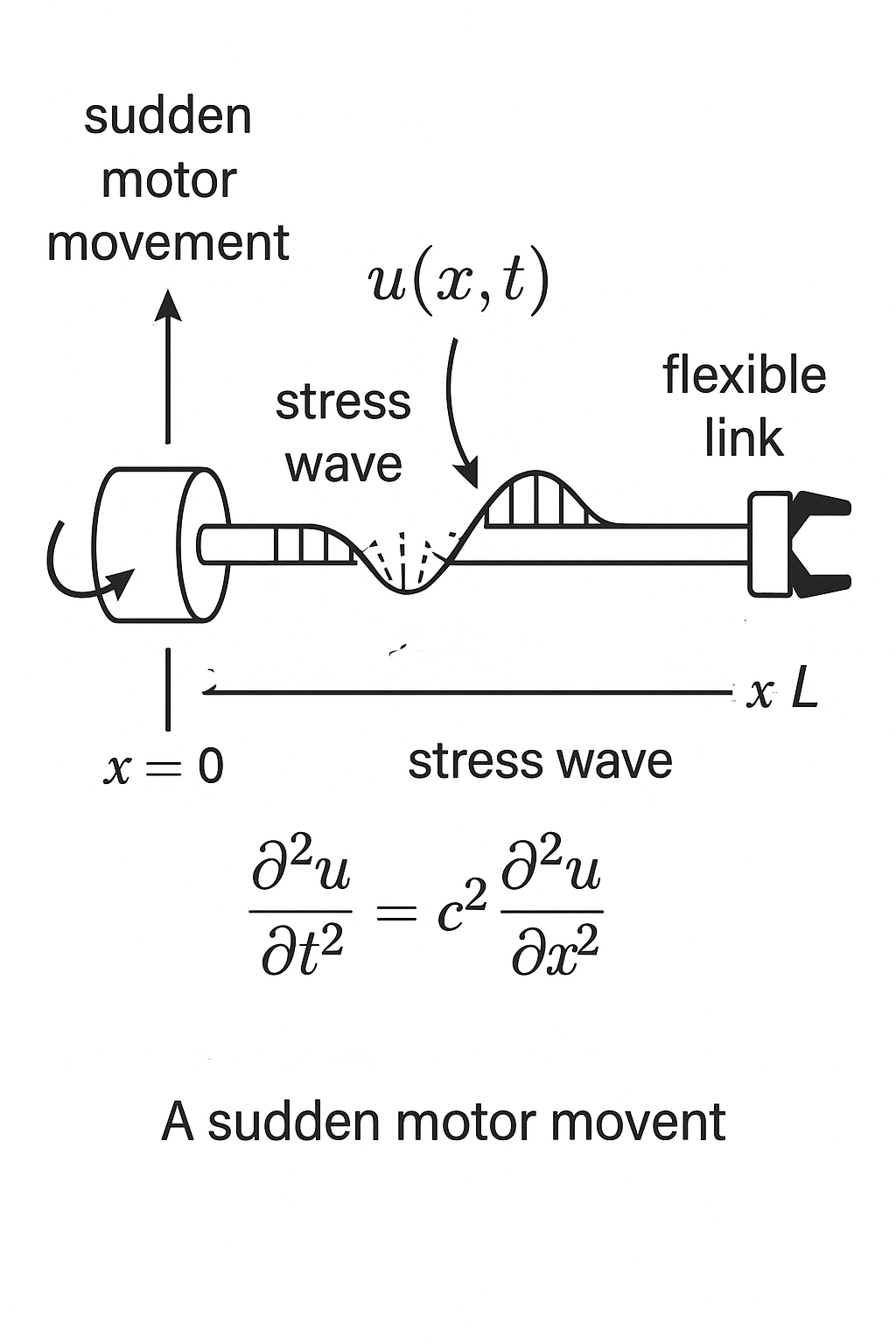

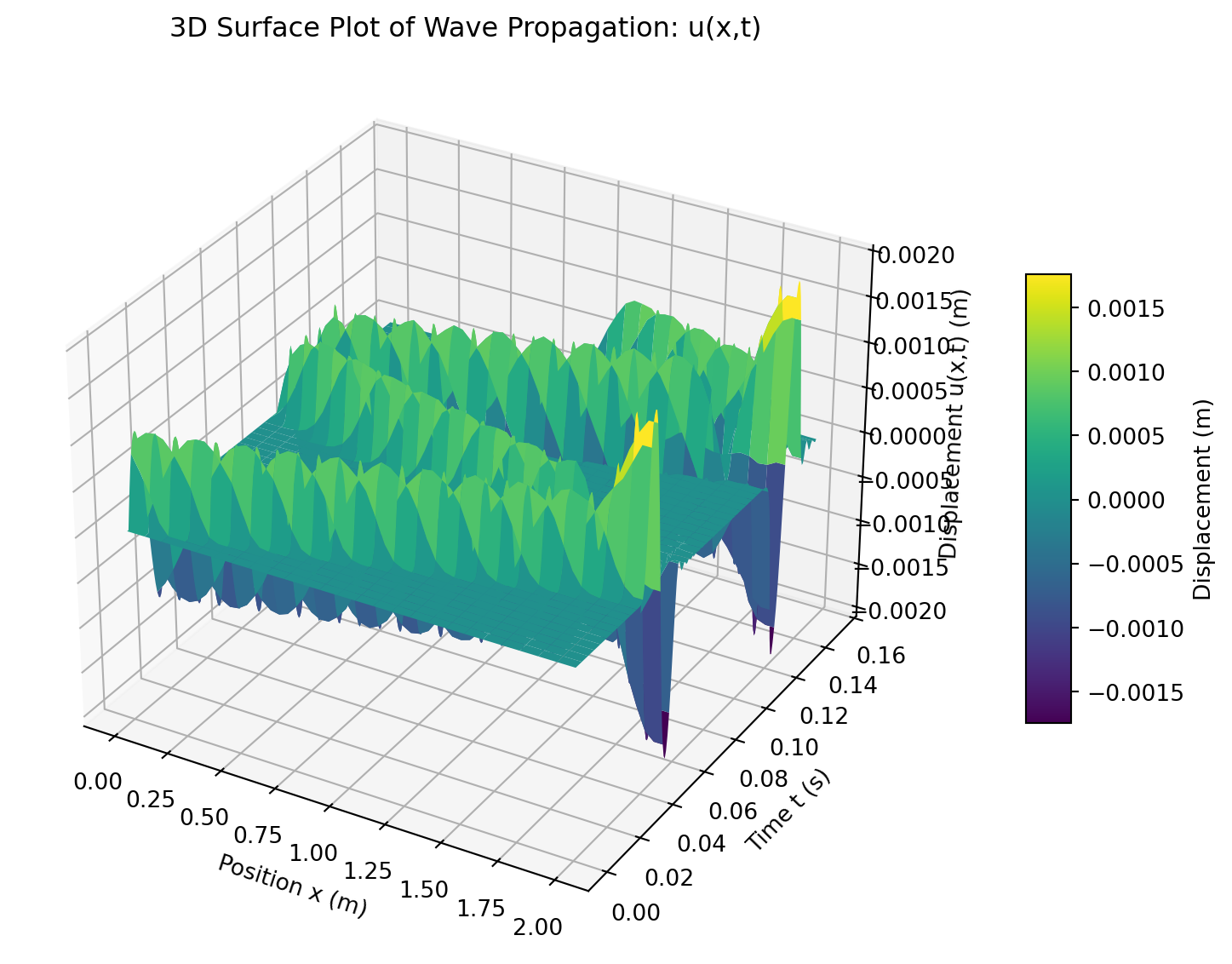

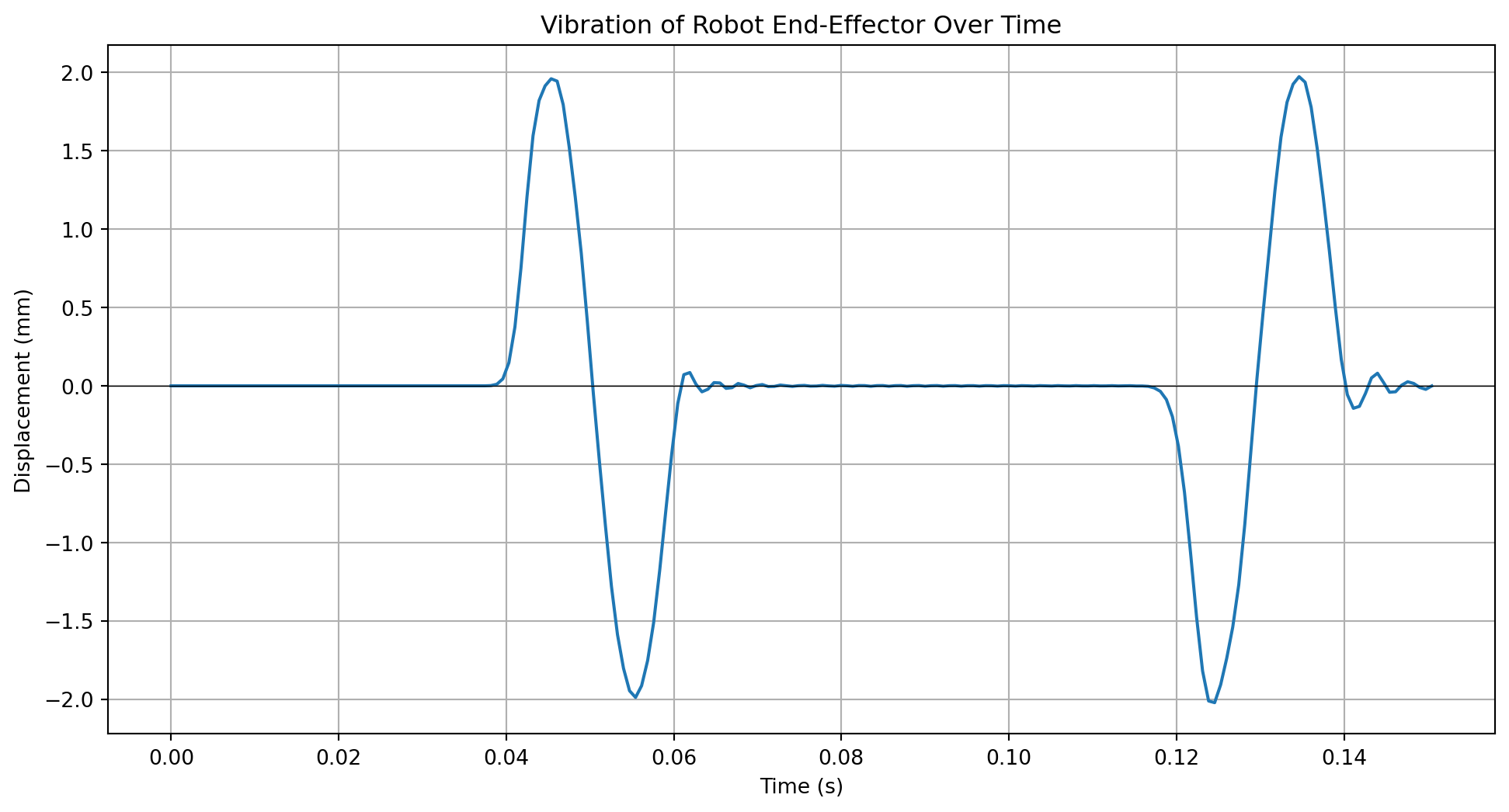

3.7 ID Heat Equation- Theoretical Background

3.8 Experiment 4: Solving the 1D Heat Equation

This experiment introduces the numerical solution of a parabolic partial differential equation: the one-dimensional heat equation. This equation is fundamental to understanding diffusion processes, not just in heat transfer but also in chemical concentration gradients and other physical phenomena.

3.8.1 Aim

To solve the one-dimensional heat conduction equation using the Finite Difference Method (explicit scheme) in Python and to visualize the temperature distribution over time.

3.8.2 Objectives

  • To understand the physical interpretation of the one-dimensional heat equation.
  • To discretize the heat equation using the Forward Time Centred Space (FTCS) scheme.
  • To implement the finite difference method in Python.
  • To analyze the stability condition required for this numerical method.
  • To visualize the temperature profiles at different time levels.

3.8.3 Governing Equation and Discretization

The one-dimensional heat equation describes how temperature u evolves at a position x and time t. It is given by:

\[ \frac{\partial u}{\partial t} = \alpha \frac{\partial^2 u}{\partial x^2} \]

where \(\alpha\) is the thermal diffusivity of the material, a constant that indicates how quickly the material conducts heat.

To solve this numerically, we use the FTCS method. We approximate the derivatives with finite differences: * Time Derivative (Forward Difference): \(\frac{\partial u}{\partial t} \approx \frac{u_i^{n+1} - u_i^n}{\Delta t}\) * Space Derivative (Centred Difference): \(\frac{\partial^2 u}{\partial x^2} \approx \frac{u_{i+1}^n - 2u_i^n + u_{i-1}^n}{(\Delta x)^2}\)

Here, the superscript n denotes the time level and the subscript i denotes the spatial grid point. Substituting these into the governing equation and rearranging for the future temperature \(u_i^{n+1}\), we get the explicit update formula.

3.8.4 Algorithm

  1. Initialize Parameters: Set the values for the rod length L, total simulation time T, number of spatial nodes \(n_x\), number of time steps \(n_t\), and thermal diffusivity \(\alpha\).

  2. Discretize the Domain: Calculate the step sizes for space and time.

    • Space step: \(\Delta x = \frac{L}{n_x - 1}\)
    • Time step: \(\Delta t = \frac{T}{n_t}\)

  3. Check Stability Condition: Calculate the stability parameter, r. For the FTCS scheme to be stable and produce a physically realistic result, this value must be less than or equal to 0.5. \[ r = \frac{\alpha \Delta t}{(\Delta x)^2} \le 0.5 \]

  4. Set Initial and Boundary Conditions:

    • Define the initial temperature distribution along the rod, \(u(x, 0)\).
    • Apply boundary conditions. In this case, we use Dirichlet boundary conditions, which means the temperature at the ends of the rod is fixed for all time (e.g., \(u(0, t) = u(L, t) = 0\)).

  5. Iterate Over Time: For each time step n, loop through all the interior spatial points i and update their temperature using the FTCS formula: \[ u_i^{n+1} = u_i^n + r \left( u_{i+1}^n - 2u_i^n + u_{i-1}^n \right) \]

  6. Output and Visualization: Store the temperature profiles at different time intervals and plot them to visualize the heat diffusion process.

3.8.5 Sample Problem and Python Implementation

Problem: Solve the 1D heat equation on a rod of length L=1.0 m with the following conditions: The temperature is zero everywhere except at the very center, where an initial “heat pulse” of 100°C is applied. The ends of the rod are kept at a constant 0°C for all time.

Code
import numpy as np
import matplotlib.pyplot as plt

# --- 1. Initialize Parameters ---
L = 1.0           # Length of the rod (meters)
T = 0.1           # Total simulation time (seconds)
nx = 21           # Number of spatial grid points (use an odd number for a perfect center)
nt = 1000         # Number of time steps
alpha = 0.01      # Thermal diffusivity (e.g., for copper)

# --- 2. Discretize the Domain ---
dx = L / (nx - 1)             # Space step size
dt = T / nt                   # Time step size

# --- 3. Check Stability Condition ---
r = alpha * dt / dx**2
print(f"Space step dx = {dx:.4f} m")
print(f"Time step dt = {dt:.4f} s")
print(f"Stability parameter r = {r:.4f}")
if r > 0.5:
    print("\n--- WARNING: STABILITY CONDITION r > 0.5 NOT MET! ---")
    print("The solution is likely to be unstable and blow up.")
else:
    print("\nStability condition r <= 0.5 is satisfied.")


# --- 4. Set Initial and Boundary Conditions ---
# Spatial grid
x = np.linspace(0, L, nx)

# Initial condition: temperature distribution is zero everywhere...
u = np.zeros(nx)
# ...except for a pulse at the center.
u[int((nx - 1) / 2)] = 100

# Boundary conditions u(0,t)=0 and u(L,t)=0 are enforced by the loop range (1, nx-1)

# --- 5. & 6. Time-stepping and Output ---
# To store results at different time steps for plotting
u_snapshots = [u.copy()]
snapshot_interval = 200 # Store a snapshot every 200 time steps

for n in range(nt):
    u_old = u.copy()
    # Loop over interior points to apply the FTCS formula
    for i in range(1, nx - 1):
        u[i] = u_old[i] + r * (u_old[i+1] - 2*u_old[i] + u_old[i-1])

    # Store a snapshot of the solution at specified intervals
    if (n + 1) % snapshot_interval == 0:
        u_snapshots.append(u.copy())

# --- Plotting the results ---
plt.figure(figsize=(10, 6))
for i, u_snap in enumerate(u_snapshots):
    time = i * snapshot_interval * dt
    plt.plot(x, u_snap, label=f't = {time:.2f} s')

plt.xlabel('Position along rod (x)')
plt.ylabel('Temperature (°C)')
plt.title('1D Heat Equation: Explicit FTCS Method')
plt.legend()
plt.grid(True)
plt.show()
Space step dx = 0.0500 m
Time step dt = 0.0001 s
Stability parameter r = 0.0004

Stability condition r <= 0.5 is satisfied.

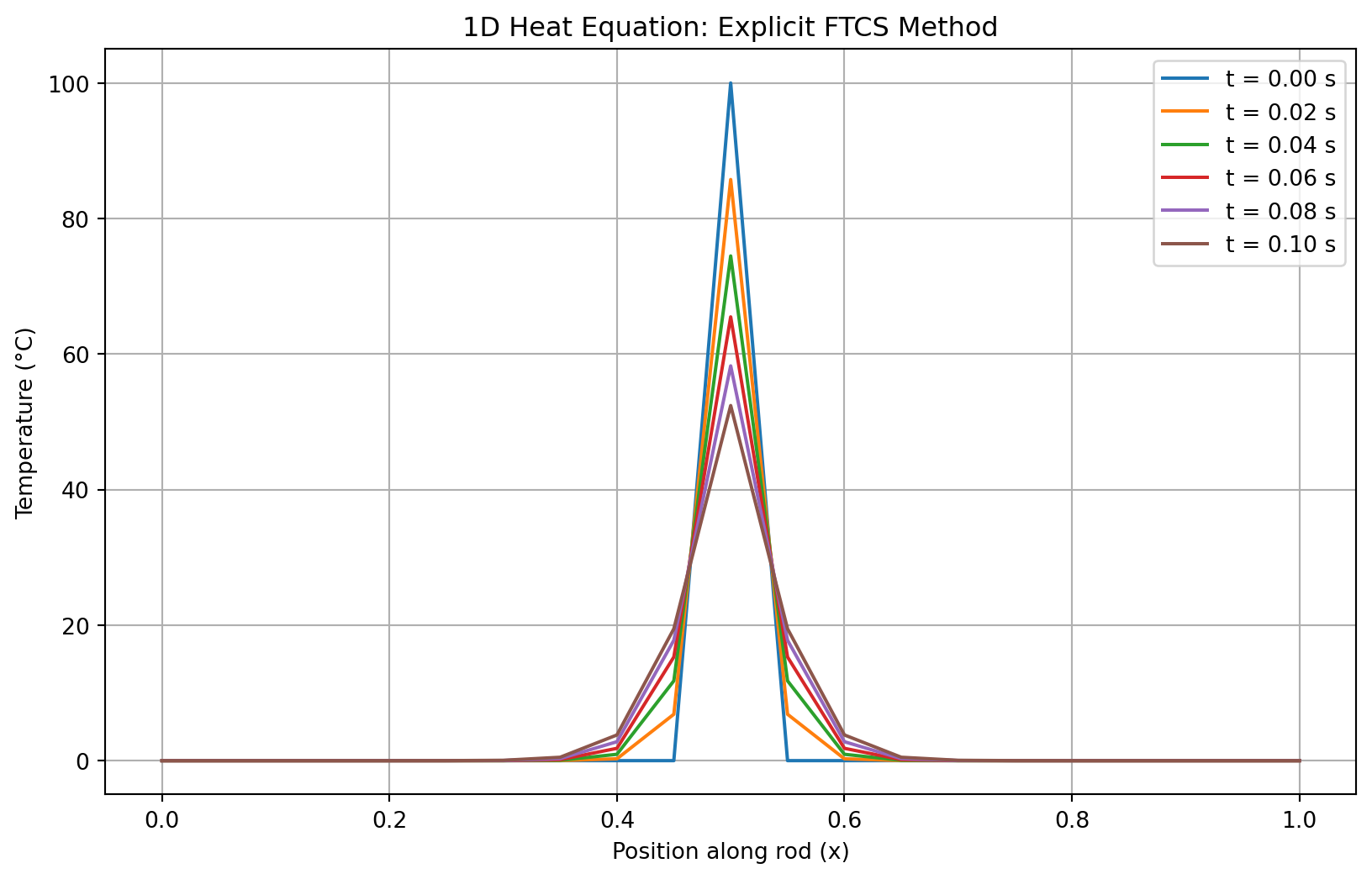

Figure 3.9: Diffusion of a central heat pulse over time, calculated with the FTCS explicit method.

3.8.6 3D version of the solution in spatial temporal domain

Code
import numpy as np
import matplotlib.pyplot as plt
from matplotlib import cm
from mpl_toolkits.mplot3d import Axes3D

# --- 1. Initialize Parameters ---
L = 1.0
T = 0.1
nx = 21
nt = 1000
alpha = 0.01

# --- 2. Discretize the Domain ---
dx = L / (nx - 1)
dt = T / nt

# --- 3. Check Stability Condition ---
r = alpha * dt / dx**2
print(f"Space step dx = {dx:.4f} m")
print(f"Time step dt = {dt:.4f} s")
print(f"Stability parameter r = {r:.4f}")
if r > 0.5:
    print("\n--- WARNING: STABILITY CONDITION r > 0.5 NOT MET! ---")
else:
    print("\nStability condition r <= 0.5 is satisfied.")

# --- 4. Initial and Boundary Conditions ---
x = np.linspace(0, L, nx)
u = np.zeros(nx)
u[int((nx - 1) / 2)] = 100

# --- 5. Time-stepping and Snapshot Storage ---
snapshot_interval = 200
snapshots = [u.copy()]
t_values = [0]

for n in range(nt):
    u_old = u.copy()
    for i in range(1, nx - 1):
        u[i] = u_old[i] + r * (u_old[i+1] - 2*u_old[i] + u_old[i-1])
    if (n + 1) % snapshot_interval == 0:
        snapshots.append(u.copy())
        t_values.append((n + 1) * dt)

# --- 6. Convert to Array and Create Meshgrid ---
U = np.array(snapshots).T  # Shape: (space, time)
T_mesh, X_mesh = np.meshgrid(t_values, x)

# --- 7. 3D Surface Plot ---
fig = plt.figure(figsize=(10, 6))
ax = fig.add_subplot(111, projection='3d')

surf = ax.plot_surface(T_mesh, X_mesh, U, cmap=cm.viridis, edgecolor='none')

ax.set_xlabel('Time (s)')
ax.set_ylabel('Position (x)')
ax.set_zlabel('Temperature (°C)')
ax.set_title('3D View of Heat Diffusion (1D Heat Equation)')
plt.tight_layout()
plt.show()
Space step dx = 0.0500 m
Time step dt = 0.0001 s
Stability parameter r = 0.0004

Stability condition r <= 0.5 is satisfied.

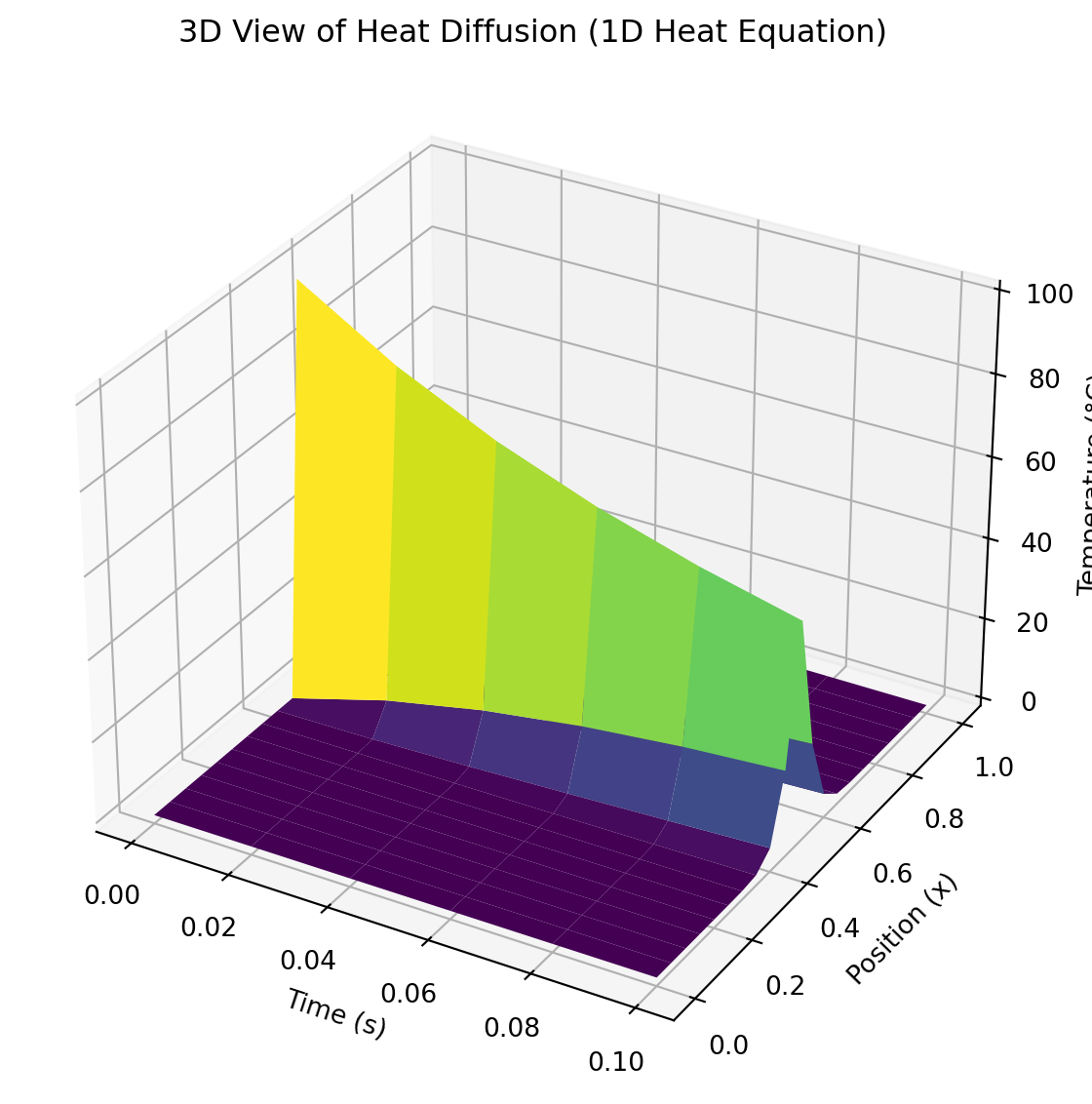

Figure 3.10: Diffusion of a central heat pulse over time, calculated with the FTCS explicit method in 3D.

Result

The overall behavior remains physically consistent, demonstrating the robustness of the FTCS method when its stability condition is respected.

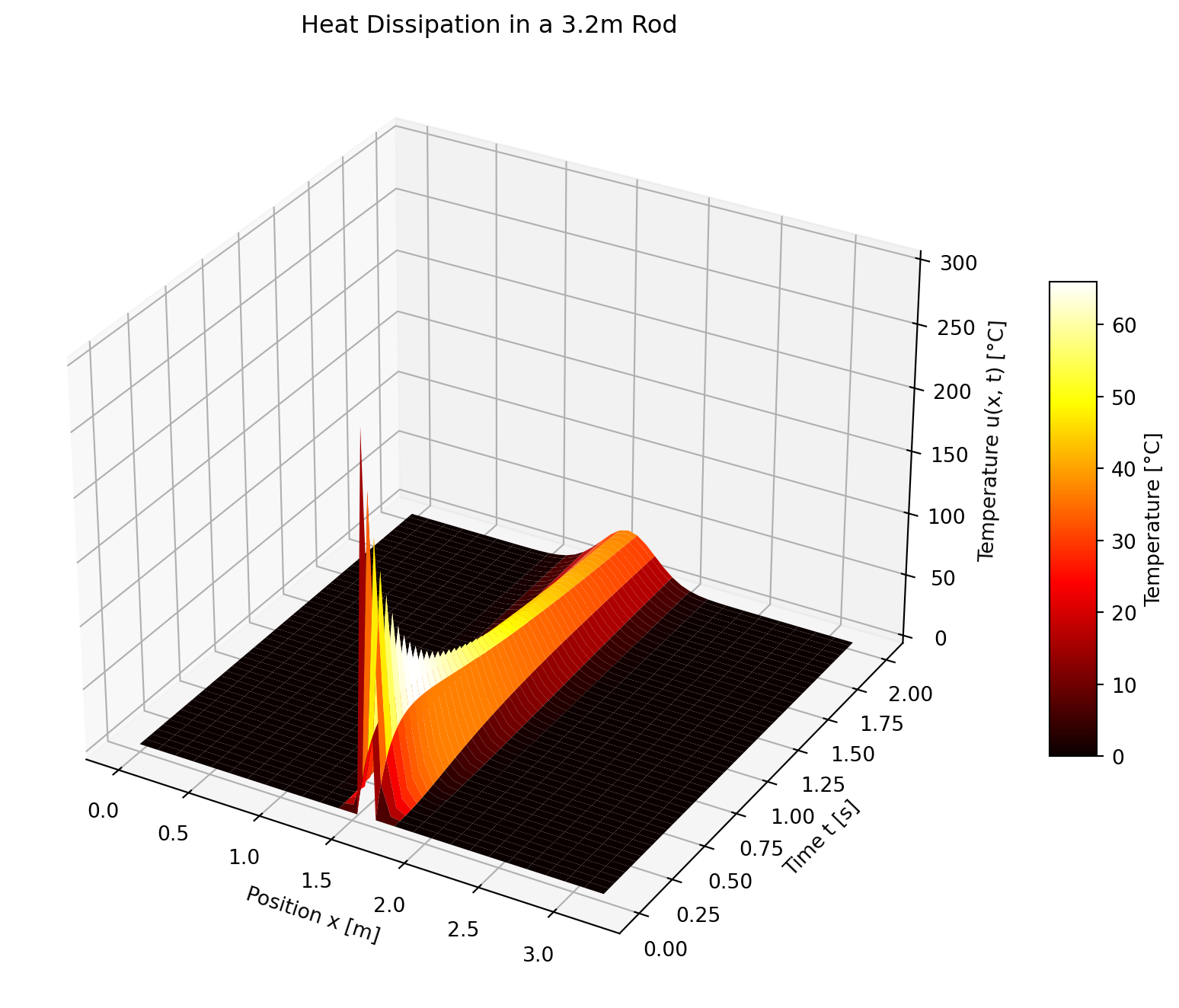

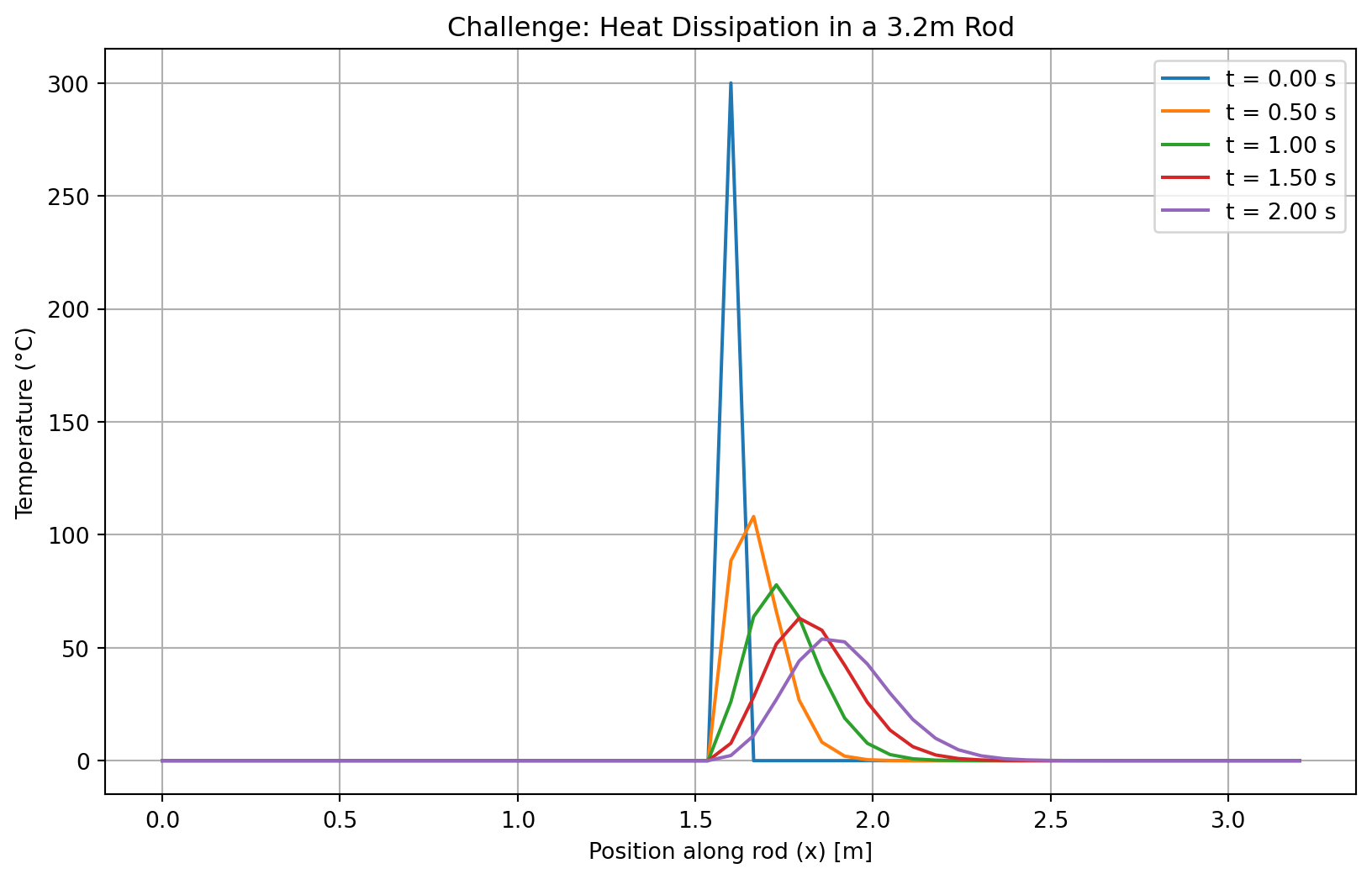

3.9 Application Challenge: Heat Dissipation in a Longer Rod

Now, let’s apply what you’ve learned to a new set of physical parameters. This exercise simulates heat dissipation in a longer structural beam with a more intense initial heat source.

Your Task

Simulate the 1D heat equation on a rod with the following new conditions:

  • Rod Length (L): 3.2 meters
  • Initial Condition: The temperature is 0°C everywhere except for a single point at the very center, which has an intense initial temperature of 300°C.
  • Boundary Conditions: The ends of the rod are maintained at 0°C (Dirichlet BC).
  • Material: Assume the same thermal diffusivity, \(\alpha = 0.01\).
  • Simulation Time (T): Run the simulation for a longer time, T = 2.0 seconds, to observe more significant diffusion.

The Challenge

  1. Copy the Python code from the previous example.
  2. Modify the parameter values (L, T, and the initial temperature pulse).
  3. Crucially, after changing L and T, you must re-calculate the stability parameter r. If r > 0.5, the simulation will fail! You will need to adjust either nx (number of space points) or nt (number of time steps) to bring r back into the stable region (\(\le 0.5\)). The goal is to find a stable combination.

Hint: The stability parameter is \(r = \frac{\alpha \Delta t}{(\Delta x)^2}\).

  • If your r value is too high, you have two options to decrease it:
  • Increase nt: This makes the time step Δt smaller, which is the most direct way to lower r.
  • Decrease nx: This makes the space step Δx larger. While this also works, it reduces the spatial resolution of your simulation.

Try increasing nt first. A good starting point would be to double it until r is stable.

Solution to the Application Challenge

Here is the complete Python code implementing the solution for the new parameters. The key is adjusting nt to ensure stability.

Code
import numpy as np
import matplotlib.pyplot as plt

# --- 1. Initialize MODIFIED Parameters ---
L = 3.2           # New Length of the rod (meters)
T = 2.0           # New Total simulation time (seconds)
nx = 51           # Number of spatial grid points (odd for a center)
# nt must be adjusted for stability. Let's start with a high value.
nt = 8000
alpha = 0.01      # Thermal diffusivity

# --- 2. Discretize the Domain ---
dx = L / (nx - 1)
dt = T / nt

# --- 3. Check Stability Condition ---
r = alpha * dt / dx**2
print(f"--- Challenge Parameters ---")
print(f"Rod Length L = {L} m")
print(f"Space step dx = {dx:.4f} m")
print(f"Time step dt = {dt:.6f} s")
print(f"Stability parameter r = {r:.4f}")

if r > 0.5:
    required_nt = (alpha * T * (nx - 1)**2) / (0.5 * L**2)
    print(f"\n--- WARNING: STABILITY FAILED (r > 0.5) ---")
    print(f"With nx={nx}, you need at least nt = {int(np.ceil(required_nt))} to achieve stability.")
else:
    print("\nStability condition r <= 0.5 is satisfied.")


# --- 4. Set Initial and Boundary Conditions ---
x = np.linspace(0, L, nx)
u = np.zeros(nx)
# Set the new initial temperature pulse at the center
u[int((nx - 1) / 2)] = 300.0

# --- 5. & 6. Time-stepping and Output ---
u_snapshots = [u.copy()]
snapshot_interval = nt // 4 # Store 4 snapshots over the total time

for n in range(nt):
    u_old = u.copy()
    for i in range(1, nx - 1):
        u[i] = u_old[i] + r * (u_old[i] + u_old[i-1] - 2*u_old[i])

    if (n + 1) % snapshot_interval == 0:
        u_snapshots.append(u.copy())

# --- Plotting the results ---
plt.figure(figsize=(10, 6))
for i, u_snap in enumerate(u_snapshots):
    time = i * snapshot_interval * dt
    # The first plot is the initial condition at t=0
    if i == 0:
        time = 0.0
    plt.plot(x, u_snap, label=f't = {time:.2f} s')

plt.xlabel('Position along rod (x) [m]')
plt.ylabel('Temperature (°C)')
plt.title('Challenge: Heat Dissipation in a 3.2m Rod')
plt.legend()
plt.grid(True)
plt.show()
--- Challenge Parameters ---
Rod Length L = 3.2 m
Space step dx = 0.0640 m
Time step dt = 0.000250 s
Stability parameter r = 0.0006

Stability condition r <= 0.5 is satisfied.
Figure 3.11: Heat diffusion from a 300°C pulse in a 3.2m rod over 2.0 seconds.

3.9.1 3D visualization of the solution

Code
import numpy as np
import matplotlib.pyplot as plt
from mpl_toolkits.mplot3d import Axes3D

# --- 1. Initialize MODIFIED Parameters ---
L = 3.2           # Length of the rod (meters)
T = 2.0           # Total simulation time (seconds)
nx = 51           # Number of spatial grid points (odd for center)
nt = 8000         # Number of time steps (ensures stability)
alpha = 0.01      # Thermal diffusivity

# --- 2. Discretize the Domain ---
dx = L / (nx - 1)
dt = T / nt
x = np.linspace(0, L, nx)
t = np.linspace(0, T, nt + 1)

# --- 3. Stability Check ---
r = alpha * dt / dx**2
print(f"--- Stability Check ---")
print(f"r = {r:.4f}")
if r > 0.5:
    print("⚠️ WARNING: Stability condition not met (r > 0.5)")
else:
    print("✅ Stability condition r <= 0.5 is satisfied")

# --- 4. Initial & Boundary Conditions ---
u = np.zeros(nx)
u[int((nx - 1) / 2)] = 300.0  # Pulse at center
u_all = np.zeros((nt + 1, nx))  # For storing the whole time evolution
u_all[0, :] = u.copy()

# --- 5. Time-Stepping ---
for n in range(1, nt + 1):
    u_new = u.copy()
    for i in range(1, nx - 1):
        u_new[i] = u[i] + r * (u[i+1] + u[i-1] - 2*u[i])
    u = u_new
    u_all[n, :] = u.copy()

# --- 6. 3D Surface Plot ---
X, T_grid = np.meshgrid(x, t)
fig = plt.figure(figsize=(12, 7))
ax = fig.add_subplot(111, projection='3d')
surf = ax.plot_surface(X, T_grid, u_all, cmap='hot', edgecolor='none')
ax.set_title("Heat Dissipation in a 3.2m Rod")
ax.set_xlabel("Position x [m]")
ax.set_ylabel("Time t [s]")
ax.set_zlabel("Temperature u(x, t) [°C]")
fig.colorbar(surf, shrink=0.5, aspect=10, label="Temperature [°C]")
plt.tight_layout()
plt.show()
--- Stability Check ---
r = 0.0006
✅ Stability condition r <= 0.5 is satisfied
Figure 3.12: Heat Dissipation in a 3.2m Rod.

3.9.1.1 Results and Discussion of the Challenge

  • Stability Management: The primary challenge was maintaining stability. By increasing the rod length L significantly, the space step Δx became larger. Since Δx is squared in the denominator of the stability parameter r, this drastically increased the tendency for r to be large. To counteract this, the number of time steps nt had to be substantially increased (to 8000 in this solution) to make Δt small enough to keep r below the 0.5 threshold. This is a critical lesson in numerical methods: changing one parameter often necessitates adjusting others to maintain a valid simulation.

  • Slower Diffusion: Comparing the plots to the first example, we can see that even though the simulation ran for a much longer time (2.0s vs 0.1s), the heat has not reached the ends of the rod. This is because the rod is much longer (3.2m vs 1.0m). Heat diffusion is a relatively slow process, and the increased distance means it takes significantly more time for the thermal energy to propagate.

  • Amplitude and Profile: The initial peak temperature of 300°C drops very quickly, as the heat immediately begins to flow into the adjacent, colder sections of the rod. The resulting temperature profiles are wider and flatter compared to the first example at equivalent early stages, which is characteristic of diffusion over a larger domain.

Result

The overall behavior remains physically consistent, demonstrating the robustness of the FTCS method when its stability condition is respected.
